Description

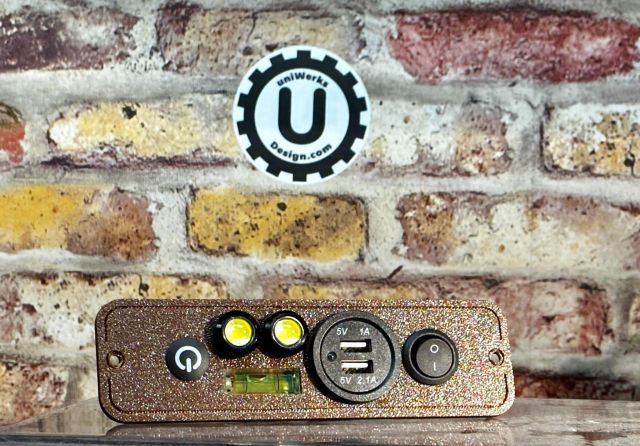

Switchable USB and LED light accessible from the top bunk!
This replaces one the A/C vent right above the slider giving you added USB power points in a very handy location plus DIMMING LED area lights for the lower passenger area AND a front to back level!!!! Now available with your choice of LEDs: 2 White or 2 Red.
**Please note that the brown option is NOT a match for the VW brown interior.
Please note:
- USE A PROPERLY SIZED FUSE (NOT SUPPLIED) WHEN INSTALLING!
- Components are supplied by various manufacturers.
- This custom-made product is exempt from the right of withdrawal in the EU.
Basic Electrical Schematic for the USB socket:
Basic Electrical Schematic for the dimmer switch:
xxxxxxxxxx
General Install Instructions:
- I ran a new fused power wire from the Aux battery up the B Pillar.
- Unscrew the fasteners holding up the headliner.
- Run wire across and tuck inside the headliner and into the vent channel above the slider.
- Remove stock vent above slider.
- Install a ground screw at a spot close to the Upper Bunk PowerPod®.
- Connect wiring as per the basic schematic above. (Wiring is really up to you, it depends on how you’d like it to operate.)
- Test the unit to make sure that it functions as you intend.
- Reinstall all of the screws that you removed.
Switch Wiring Guide
BK = 12V-
RD = 12v +
RD = LED +
YL = LED –
